Stable Sidestream ETCO2 Sensor for GE,Philps,Nihon Konden main brands

Ask Lasest Price
Brand Name :	Med Accessories
Model Number :	MCMZ40
Supply Ability :
Price :
Certification :	CE,ISO,SFDA
Delivery Time :	About one week
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

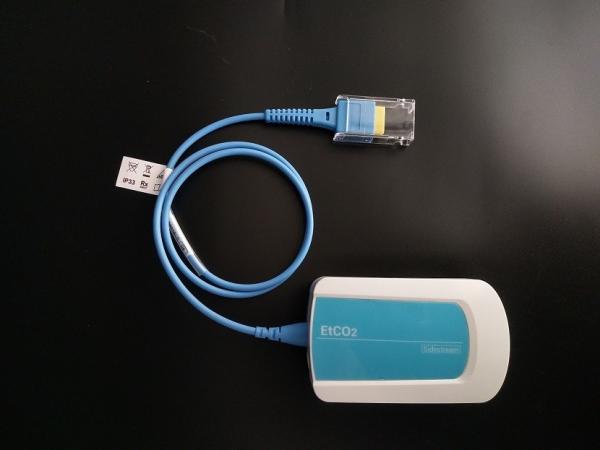

Stable Sidestream ETCO2 Sensor for GE,Philps,Nihon Konden main brands

Sidestream ETCO2 For main brands

ETCO2 Sensor Catalogue.pdf

CO2 Sampling Lines Catalogue(1).pdf

Project

Specifications

Principle of Operation

Non-dispersive infrared(NDIR) single beam optics, dual wavelength, no moving parts.

Initialization Time

Capnogram displayed in less than 3 seconds,full specifications within 3 minutes(At 25°C).

CO2 Measurement Range

0 - 114 mmHg; 0 - 15 %; 0 - 15.2 kPa.

CO2 Rise Time

Rise Time Less than 80 ms - Adult Reusable or Single-Patient-Use Airway Adapter Less than 80 ms - Infant Reusable
or Single-Patient-Use Airway Adapter.

CO2 Resolution

0. 1mmHg ; 0 to 38 mmHg.; 0.25 mmHg ; 39 to 114mmHg.

CO2 Accuracy

0 - 40mmHg ±2 mmHg.; 41 - 76mmHg ±5% of reading.; 77 - 114 mmHg ±8% of reading.
Above 80 breaths per minute ±12% of reading. * Note: Gas emperature at 25°C.

CO2 Stability

Short term drift: Drift over four hours shall not exceed 1 mmHg maximum.
Long term drift: Accuracy specification will be maintained over a 120-hour period.

Sampling Frequency

100Hz.

Respiration Rate Range

3 to 150 breaths per minute.

Respiration Rate Accuracy

±1 breath.

Calibration

No routine user calibration required. An airway adapter zero is required when changing to a different style of airway
adapter.

Airway Adapters

Single-patient-use or reusable, < 5 cc dead space (adult), < 1 cc dead space infant.

Temperature

Operating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.

Humidity

Operating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing.;
Transport: 10 to 90% RH, non-condensing.

Atmospheric Pressure

Operating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.

Water Resistance

IPX4 - Splash-proof - Sensor only.

Voltage Requirements

5VDC ± 5 %.

Power Rating

<1.0W Typical; <1.8 W Warm-up.

Sensor Weight

<85g.

Sensor Size

Deep*Wide*High:48mm * 24.3mm * 35.5mm.

Cable Length

2.4m.
